Save 15%~20% Electricity Per Month

Usage Scenarios: Large Buildings, Office Buildings,Residences, Hotels, Restaurants, Cars And Other Places

UV protection: 90~100%
Infrared isolation: 38~50%
Visible light(V/L): 85~88
Temperature difference: 8~9

Construction process: spraying
Spray gun suitable for 1.0 and 1.5 caliber
Oil output 1.0 caliber: it is recommended to adjust the oil output in a circle of 360 degrees is better.
Atomization area: open to 15cm~maximum.
Take 1.0 caliber spray gun data as an example, spraying 3 guns, product temperature difference can be 8~9℃.

TDS/SPECIFICATION:
MS-TM5214

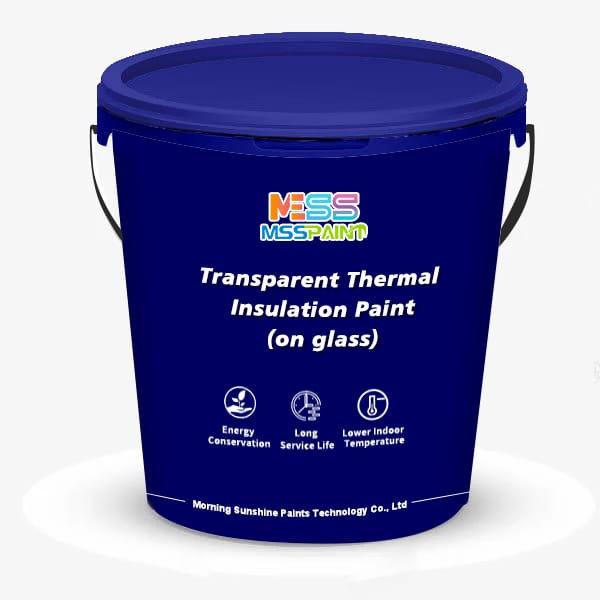

Transparent Thermal Insulation Paint
Visible Light(V/L) : 78~82%
Temperature difference: 13~14°C
Surface dry : within 30 minutes

Construction techniques for transparent insulation products:

• The light transmittance is 78~82%, and the thermal insulation effect is 13~14℃ .

  ① Please stir or shake evenly before use.

② Please use a 200~300 mesh filter for construction tools and 1.3 or 1.5-caliber pneumatic spray guns and products.

③ Adjust the pneumatic spray gun. It is recommended to adjust the oil output by 1 to 2 turns. Adjust the spray width to the maximum. It is best to keep the air pressure at 0.3 to 0.4MPa. (Please refer to the picture below for tool adjustment)

④The distance between the spray gun and the base material is preferably within 20CM, and spray 2 to 3 shots at a uniform speed. (Spraying the substrate completely once is one shot)

⑤Resistant to scrubbing 100 times.

Theoretical dosage：In the case of 1 kg

① Spray 1 layer, the construction area is 30~35㎡, the insulation temperature difference is 8~10℃

① Spray 2 layers, the construction area is 17~20㎡, the insulation temperature difference is 10~12℃

① Spray 3 layers, the construction area is 10~15㎡, the insulation temperature difference is 13~14℃

Note: The effect of spraying construction is related to temperature and humidity, and appropriate adjustments should be made when necessary.
